機油濾清器

John Deere約翰迪爾強鹿柴油發(fā)動機機油濾清器配件銷售維修維護技術(shù)零件資料手冊

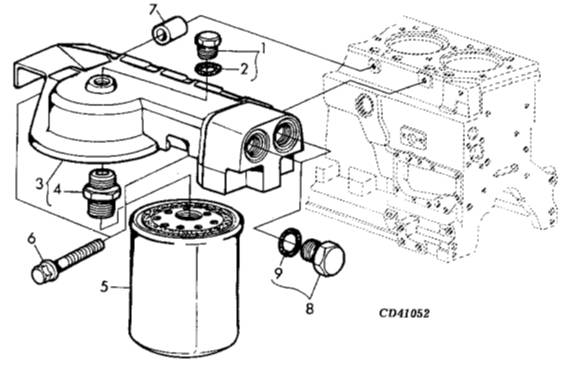

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 .................. FITTING NA X X M16 X 1.5

2 .................. O-RING NA X X

3 RE59906 FILTER HEAD 1 X X (MARKED R134570)

4 R123591 THREADED NIPPLE 1 X X

5 RE59754 OIL FILTER 1 X X

6 19M7835 SCREW 2 X X M10 X 35, (10.9)

7 R114358 SPACER 1 X X 12 X 25.400 X 12.700 MM

8 RE46687 FITTING 2 X X M22 X 1.5

9 51M7045 O-RING 1 X X 19.300 X 2.200 MM

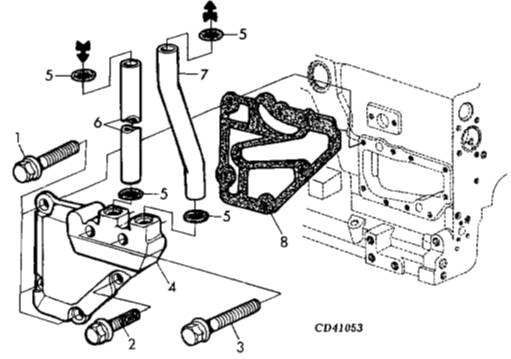

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 19M7802 SCREW 3 X X M8 X 65, (10.9)

2 RE67238 SCREW 1 X X THREADS SEALANT COATED

3 19M7913 SCREW 2 X X M8 X 90, (10.9)

4 R135916 ADAPTER 1 X X

5 R72328 O-RING 4 X X

6 R135270 TUBE 1 X X

7 R135271 TUBE 1 X X

8 R123504 GASKET 1 X X
