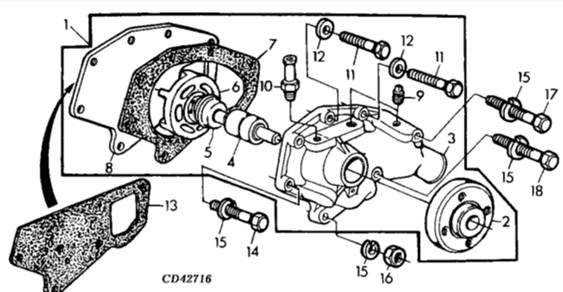

John Deere約翰迪爾強鹿6068 3.9-6.8L水泵零件圖冊

KEY PART NO. PART NAME QTY SERIAL NO. D REMARKS

1 RE503264 WATER PUMP 1 X

2 R130586 HUB 1 X

3 .................. HOUSING 1 X MARKED R67188, ORD RE503264

4 .................. BALL BEARING 1 X ORD RE62658

5 .................. SEAL 1 X ORD RE62658

6 .................. IMPELLER 1 X ORD RE62658

7 R97455 GASKET 1 X

8 R102901 COVER 1 X TK 6MM

9 15H584 PIPE PLUG 2 X 1/2"-14NPT

10 T19651 HOSE FITTING 1 X 1/4"-18NPT, LGTH 40MM

11 19H3219 CAP SCREW 2 X 3/8" X 1-3/8", (SAE 8)

12 24M7096 WASHER 2 X 10.500 X 18 X 1.600 MM

13 T20243 GASKET 1 X

14 19H3065 CAP SCREW 1 X 3/8" X 2", (SAE 8)

15 12H304 LOCK WASHER 4 X 3/8"

16 14H1076 NUT 1 X 3/8"

17 19H1912 CAP SCREW 1 X 3/8" X 3-1/2", (SAE 8)

18 19H3413 SCREW 1 X 3/8" X 3-1/4"
